Mounting Pole Kit for Vantage Pro2 & Vue Weather Stations

Having a proper weather station mounting pole makes installation and proper siting easy. This mounting pole kit is perfect for your Vantage Vue or Vantage Pro2 weather station. It is also an excellent choice for mounting EnviroMonitor Cellular Gateways, EnviroMonitor Nodes, and Sensor Transmitters. The mounting pole kit contains two poles. One is 19.5" (0.50 m) long, and the second one is 21" (0.53 m) long. The total length when both poles are connected is 37.5" (0.95 m) long.

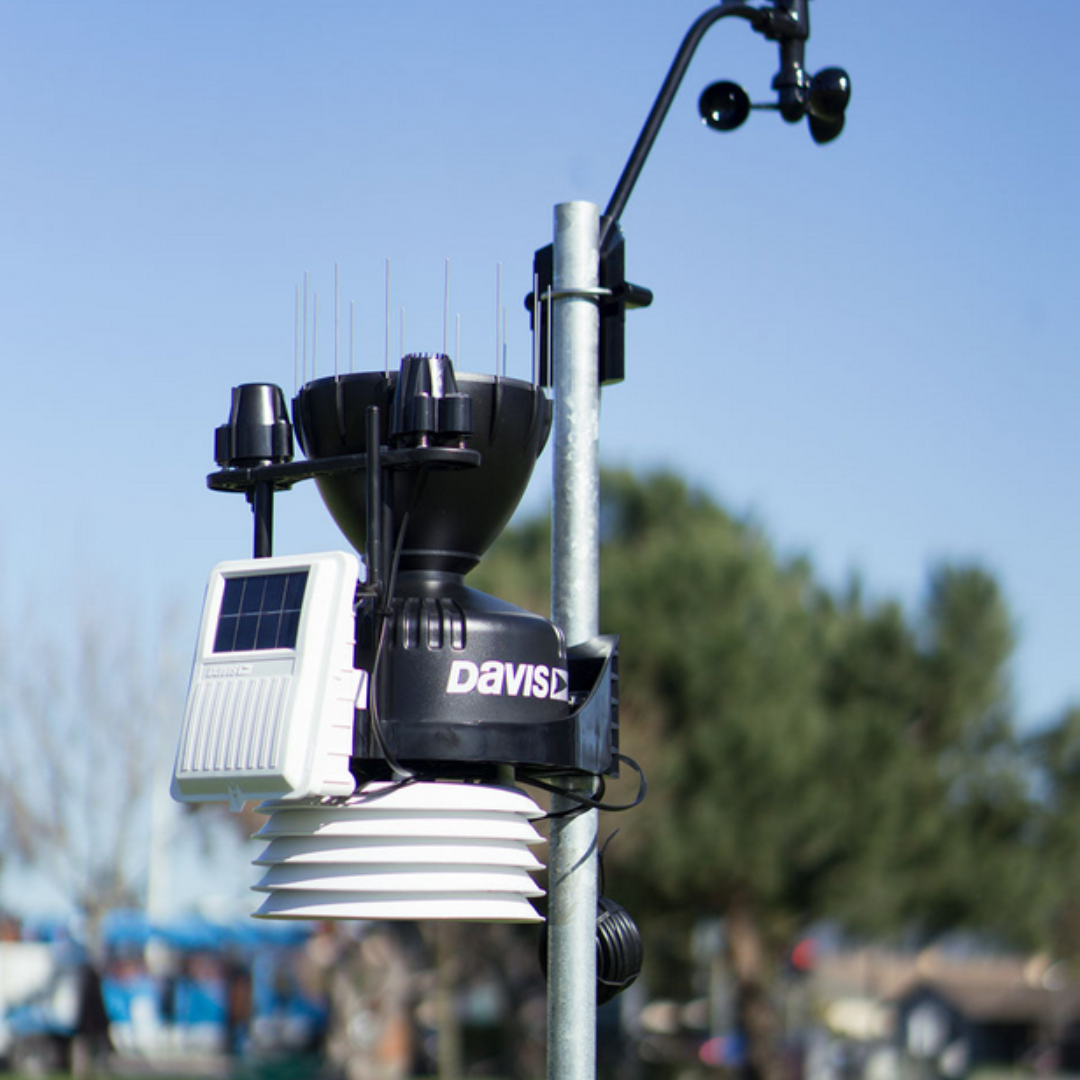

The poles are galvanized, and the mounting hardware is stainless steel. This mounting pole is an excellent choice for mounting your weather station on the side of the building above the roofline or on an outdoor pole or fencepost. It can be used in a wide range of circumstances. The pole kit includes the all mounting hardware necessary.

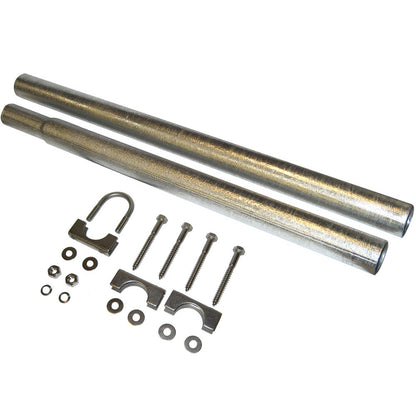

The kit includes:

• 1x 19.5" swaged end support tube
• 1x 21" long extension tube
• 3x 1-1/2" saddles
• 6x 5/16" flat washers
• 2x 5/16" lock washers
• 2x 5/16" hex nuts
• 1x 5/16" x 1-1/2" U-bolt
• 4x 5/16" x 3" lag screws
• 4x 8" cable ties

To assemble the kit, you will need an adjustable wrench and a drill with a 0.25" (6 mm) bit.
